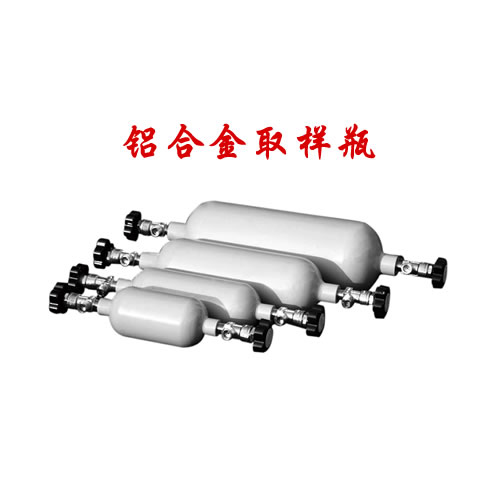

取樣瓶
取樣瓶
產(chǎn)品介紹
取樣瓶
技術參數(shù)
|
取樣瓶 (Sampling Cylinder) |
|||||||||||||
|
品號 Part No. |
型號 Model |
外徑 Outside Diameter |
容積 Water Capacity |
壁厚 Wall Thickness |
工作壓力 Service Pressure |
重量 Weight |
高度 Length |
||||||
| mm | in | Lts | Cu in | mm | in | bar | psi | kgs | lbs | mm | in | ||
| S1 | LWS89-0.7-15 | 89 | 3.5 | 0.7 | 42.7 | 4.5 | 0.2 | 150 | 2175.6 | 0.7 | 1.5 | 232 | 9.1 |
| S2 | LWS89-1.0-15 | 89 | 3.5 | 1.0 | 61.0 | 4.5 | 0.2 | 150 | 2175.6 | 0.9 | 1.9 | 291 | 11.5 |
| S3 | LWS89-2.0-15 | 89 | 3.5 | 2.0 | 122.0 | 4.5 | 0.2 | 150 | 2175.6 | 1.6 | 3.4 | 361 | 14.2 |
| S4 | LWS108-1.0-15 | 108 | 4.3 | 1.0 | 61.0 | 5.5 | 0.2 | 150 | 2175.6 | 1.0 | 2.2 | 252 | 9.9 |
| S5 | LWS108-2.0-15 | 108 | 4.3 | 2.0 | 122.0 | 5.5 | 0.2 | 150 | 2175.6 | 1.8 | 4.0 | 386 | 15.2 |
| S6 | LWS108-3.0-15 | 108 | 4.3 | 3.0 | 183.1 | 5.5 | 0.2 | 150 | 2175.6 | 2.6 | 5.8 | 520 | 20.5 |
| S7 | LWS108-4.0-15 | 108 | 4.3 | 4.0 | 244.1 | 5.5 | 0.2 | 150 | 2175.6 | 3.4 | 7.5 | 654 | 25.7 |
| S8 | LWS140-4.0-15 | 140 | 5.5 | 4.0 | 244.1 | 7.1 | 0.3 | 150 | 2175.6 | 4.5 | 9.9 | 450 | 17.7 |
| S9 | LWS140-6.0-15 | 140 | 5.5 | 6.0 | 366.1 | 7.1 | 0.3 | 150 | 2175.6 | 5.3 | 11.7 | 611 | 24.1 |
| S10 | LWS140-8.0-15 | 140 | 5.5 | 8.0 | 488.2 | 7.1 | 0.3 | 150 | 2175.6 | 6.7 | 14.8 | 773 | 30.4 |
